QMS HyperLine™

HyperLine™ and HyperLine™ ULTRA are cold-applied, spray-on systems designed to rejuvenate existing road markings on motorways and dual carriageways.

Applied directly over existing markings, with no removal, no heat, and no fossil-fuel burners, they restore colour, retro-reflectivity, and wet-night visibility fast, with up to 89% less CO₂ than thermoplastic.

HyperLine™

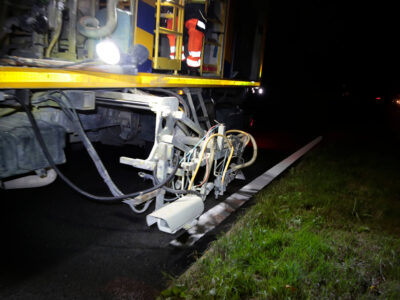

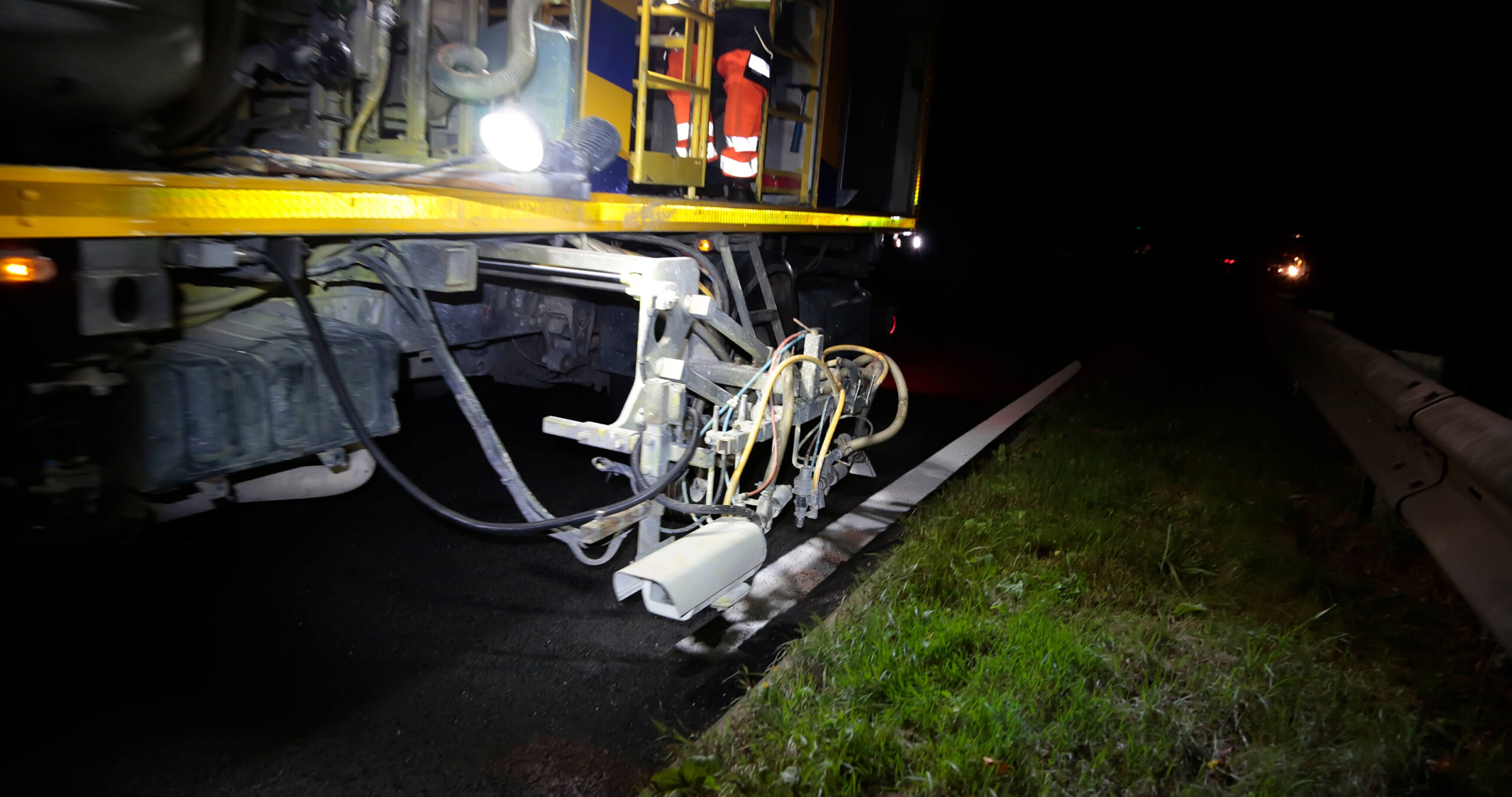

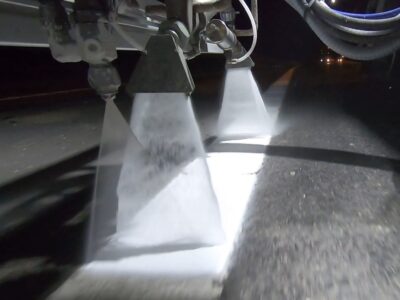

The proven choice for edge-line refurbishment on motorways and dual carriageways. HyperLine™ uses a solvent-free acrylic resin with embedded recycled glass beads, spray-applied directly over existing markings using computer-controlled equipment.

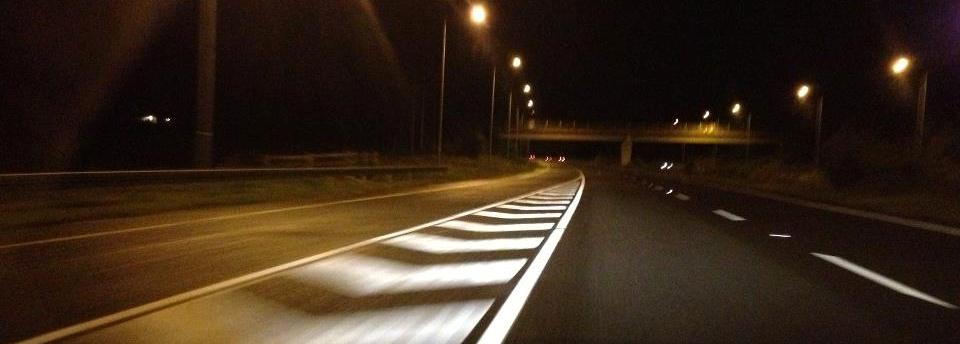

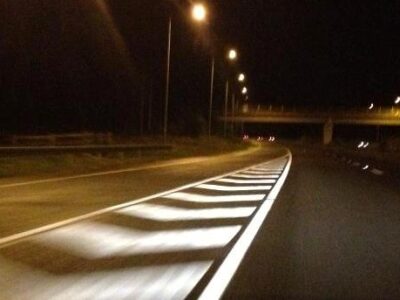

Applications: Overspray of edge-line markings on motorways and dual carriageways. Hatching and chevrons (hand spray).
Speed: Transforms up to 30,000 m of 200 mm edge line per 8-hour shift (approx. 6,000 m²).
Sustainability: Saves 89% CO₂ versus thermoplastic over equivalent output.

HyperLine™ ULTRA

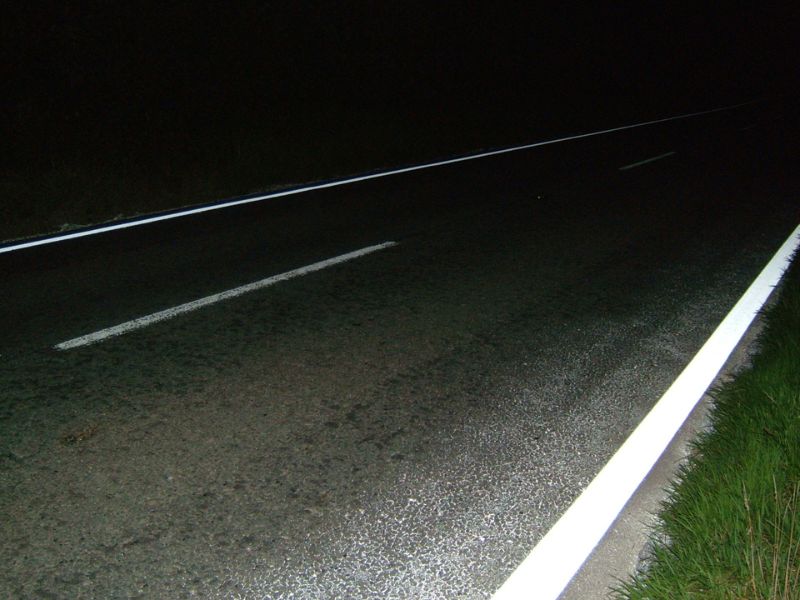

Built specifically for superior wet-night performance. HyperLine™ ULTRA uses larger, high refractive index beads to maximise retro-reflectivity in the heaviest rain, when drivers need it most. It is also the ideal overspray system for rejuvenating QMS EcoRib™ and EcoRib PLUS™ profiled edge lines.

Applications: Overspray of lane-line markings on motorways and dual carriageways. Rejuvenation of QMS EcoRib™ and EcoRib PLUS™ systems.
Speed: Rapid deployment of up to 40,000 m of lane line per 8-hour shift.
Sustainability: Saves 81% CO₂ versus thermoplastic over equivalent output.
Visibility: Delivers 500+ mcd/m²/lux on application and a guaranteed 200 mcd/m²/lux at 24 months.

Both systems carry a 24-month performance guarantee with a typical life expectancy of 36–60 months. When performance finally begins to decline, both can simply be over sprayed again, with no costly removal required.

For the full spec, check our technical sheet.

Technical Sheet FAQs

Featured Articles

M40 Line Marking Motorway Safety Improvement Scheme
Introduction Line markings are a fundamental contribution to road safety. Essentially, they turn a non-descript, black surface into a road; shaping a driver’s perception of space and influencing behaviour. During the hours of darkness, the retro-reflectivity of road markings on the highway is essential to enable the driver to follow highway geometry. The miniature glass spheres embedded within road markings... Read more
A50 DBFO Network | Line Marking
Introduction QMS HyperLine™ is a high performance road marking system used for the over-marking and rejuvenation of existing delineation on arterial networks. Utilising a combination of solvent free acrylic resin containing no plastic plus two specific sizes of glass beads, QMS HyperLine™ provides instant retro-reflectivity on application, significantly improving day and night time visibility for the road user. On application... Read more
A38 Highways England Area 1 | Hyperline | Case Study | QMS
Quality Marking Services (QMS) were approached in 2014 by the managing agent for what was then the Highways Agency in Area 1 to deliver QMS HyperLine™ ULTRA. This unique overspray system is specifically designed to enhance the appearance of road markings at night, in both dry and wet conditions. Area 1 encompasses the A38 and A30 in Devon and Cornwall... Read more
Choose QMS HyperLine™ Line Marking For The Winter
What is QMS HyperLine™ Highway Line Marking? At QMS, having been working within the line marking industry for over two decades, we know that motorway and dual carriageway night-time driving can be treacherous, especially when you add wind, rain or even fog into the mix. QMS HyperLine™ is a waterborne acrylic highway marking system, which can be applied in various areas and aspects... Read more

Related Services

Highway Markings

Precision highway road markings engineered for visibility and durability to keep drivers safe.

EcoRib™

Find out more about our EcoRib™ services and how we can help you achieve your project goals.

ColdMark™

Find out more about our ColdMark™ services and how we can help you achieve your project goals.

Frequently Asked Questions

HyperLine™ is designed for high reflective edge-line markings including hatching and chevrons. HyperLine™ ULTRA uses higher refractive index beads for enhanced wet-night visibility, making it the preferred choice for lane lines and for over spraying QMS EcoRib™ systems.

Both systems carry a 24-month guaranteed performance period. Typical life expectancy is 36–60 months depending on location and traffic conditions.

Yes. When performance begins to decline, but remains above specification minimums, both systems can simply be over sprayed to restore retro-reflectivity. No removal is needed, and material build-up over time is not a concern.

Cold application eliminates burn risk to operatives, removes fossil-fuel heating equipment from the carriageway, and significantly reduces CO₂ by up to 89% less than thermoplastic for equivalent output. It’s also faster: HyperLine™ achieves in one shift what thermoplastic takes three to complete, meaning less traffic disruption and a shorter programme.

HyperLine™: up to 30,000 m of 200 mm edge line per 8-hour shift (approx. 6,000 m²). HyperLine™ ULTRA: up to 40,000 m of lane line or 20,000 m of 200 mm edge line per shift (approx. 4,000 m²).
